Application Cases of Gantt Charts in Building Construction: How to Solve Schedule Problems with Visualization Tools
Last week, a friend working in construction came to me complaining: "The client wants to change the plan ten times, and the workers' schedule is completely messed up. What should I do?" To be honest, this scenario is all too common—construction projects often involve hundreds of processes and dozens of workers. If you're not careful, budgets balloon and deadlines slip. The Gantt chart, as an old-school tool in project management, turns out to be the perfect solution for these exact problems. Especially in building construction project management, its visualization capabilities are nothing short of a lifesaver for both clients and contractors.
What Exactly Is a Gantt Chart? And How Is It Different from Similar Concepts?
Definition: A Gantt chart is a visual tool that shows task progress using bar charts. The timeline aligns with task bars, allowing you to immediately see what needs to be done and when. For example, excavating the foundation runs from Monday to Friday, followed by concrete pouring. Key Differences:
- Compared to Bar Charts: Bar charts purely display timeframes, while Gantt charts can indicate dependencies (e.g., rebar binding must finish before concrete pouring).
- Compared to Milestone Charts: Milestone charts only mark key nodes (like topping-out dates), whereas Gantt charts break down every detail, including individual workers’ schedules.
- Compared to Critical Path Method: The critical path method focuses on the longest chain of time-consuming tasks, while the Gantt chart visually highlights this chain as highlighted bars.
How to Use Gantt Charts in Construction Projects—These Features Are Truly Powerful!
1. Task Breakdown: Don’t Fear Complexity—Break It Down Until Workers Understand

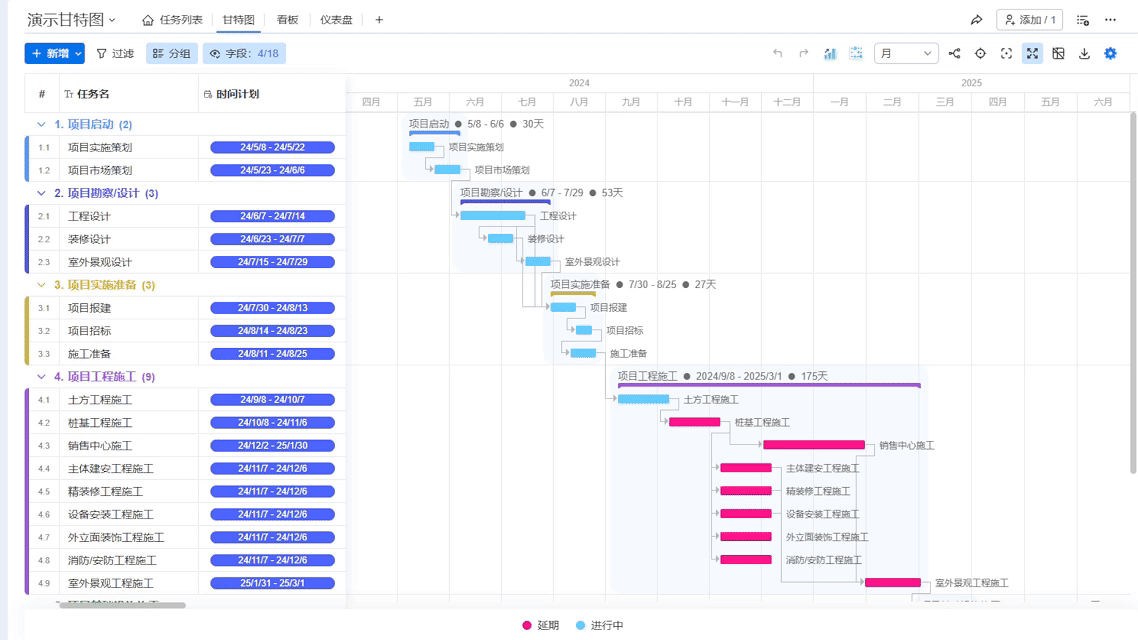

Construction projects often come with thousands of pages of contracts, but using a Gantt chart means breaking things down into actionable mini-tasks like “excavation,” “base layer installation,” and “waterproofing.” For instance, in a residential building project, the “main structure” might be split into rebar work, formwork, and concrete pouring, each further broken down by floor and crew. With Ganttable's AI-powered splitting feature, stages can be generated automatically, saving you the hassle of manually dragging and dropping elements.
2. Highlight the Critical Path—Protect This Lifeline at All Costs
In construction projects, the "choke points" are often tasks like structural topping-out or elevator installation. Using the Critical Path Method (CPM) allows you to highlight these in the Gantt chart so managers can instantly see: if waterproofing is delayed by one day, the entire finishing phase gets pushed back. At this point, the PERT time estimation formula comes into play—for example, estimating concrete curing time with optimistic (5 days), most likely (7 days), and pessimistic (10 days) scenarios gives an expected time of 7.17 days, offering precise risk control.
3. Resource Conflict Warnings—Avoid Idle Equipment Like Cranes
Nothing is more frustrating on-site than resource conflicts: one crane being booked by both the rebar team and the formwork team at the same time? Ganttable’s resource conflict detection will flag this immediately. In a Beijing construction project, it even helped identify two crews fighting over a hoist, enabling a timely rescheduling that saved at least three days of idling costs.
Schedule Delays? Don’t Panic—Let the Gantt Chart Teach You “Crash Tactics”
Honestly, almost no construction project finishes exactly on schedule—the key is how to recover!
- “Crashing” Strategy: Add more people or equipment to critical tasks. For example, increasing the number of rebar workers from 10 to 15 can reduce the duration from 7 days to 5 days—though costs may double, you’ll still hit the deadline.
- “Fast Tracking” Tactic: Instead of waiting until the roof is complete before erecting scaffolding, try starting locally ahead of time! Use fast tracking to save at least three days.
This article specifically explains how Gantt charts use crashing and fast tracking to rescue failing timelines.
